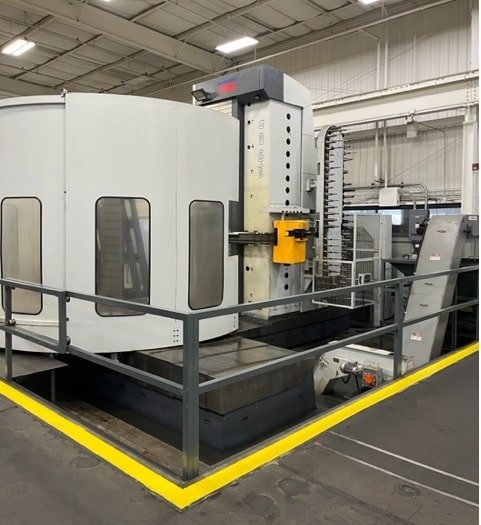

TOS WHR13Q 5.12” HORIZONTAL BORING MILL
SPECIFICATIONS:
SPINDLE DIAMETER 5.12″
SPINDLE TAPER #50 ISO
TABLE CROSS TRAVEL, X-AXIS 137″
VERTICAL TRAVEL, Y-AXIS 98.42″
SPINDLE TRAVEL, W-AXIS 31.49″
COLUMN INFEED TRAVEL, Z-AXIS 55″
TABLE SIZE, BUILT IN ROTARY 70.8″ X 98.4″
ROTARY TABLE, B-AXIS 360,000
ROTARY TABLE LOAD CAPACITY 39,600 LBS
SPINDLE SPEEDS: 10-3000 RPM
EQUIPPED WITH:
HEIDENHAIN ITNC 530i CNC CONTOURING CONTROLS
40-STATION AUTOMATIC TOOL CHANGER
THRU-SPINDLE COOLANT
T-TYPE CONSTRUCTION, IN-FEEDING COLUMN
BUILT B-AXIS ROTARY TABLE
OPERATORS PLATFORM
HARDENED WAYS
STEEL TELESCOPING WAY COVERS
CHIP AND SPLASH ENCLOSURE
50 HP SPINDLE DRIVE
