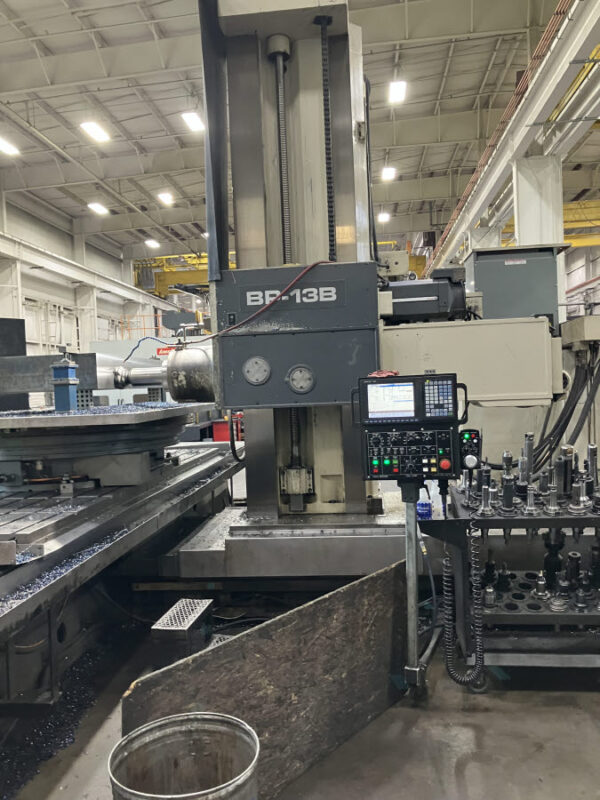

Toshiba BP-13B-P7 PLAIN TABLE TYPE CNC HORIZONTAL BORING MILL
NEW-1993 Control Retrofit Yr 2019
Control……………………………: Mitsubishi 70 Series (Retrofit)
Spindle Diameter……………………: 5.12″
Table Size…………………………: 60″ x 168″
X Travel…………………………..: 157″
Y Travel…………………………..: 92″
Z Travel Column In/Out………………: 60″
W Axis Spindle Travel……………….: 27″
Spindle Speeds……………………..: 2,500 RPM
Spindle Taper………………………: # 50
Max. Table Load…………………….: 44,000 Lbs.
Machine Weight……………………..: 65,000 Lbs.
Equipped With:
Mitsubishi 70 Series Control
All new Mitsubishi Spindle Motor & Drives (total retrofit)
Glass Scales X & Y
20gig Hard Drive
High Speed Machining
Telescoping Stainless Steel Way Covers
Toshiba Hardened and Ground Large Flat Ways
New Turcite Just Installed For Table Ways in 2004
Coolant
