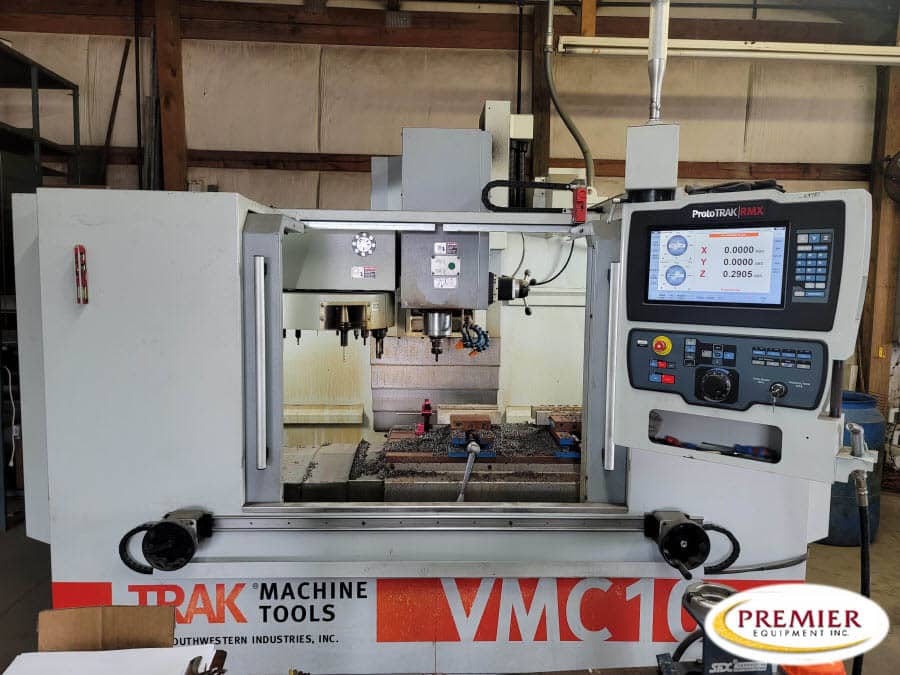

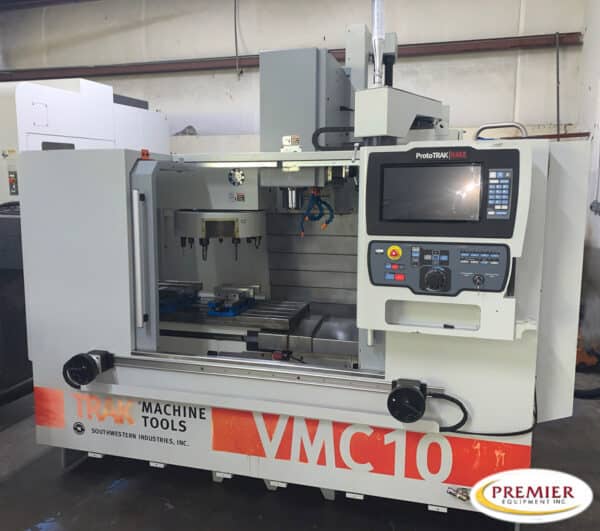

Trak (Southwestern Industries) VMC10 CNC Mill
CNC Vertical Machining Center
CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size: 44.09″ x 19.69″
T-slots (number x width x pitch) : 5 x .709″ x 3.937″
Maximum Weight of Workpiece: 1,000 lbs
Height of Table from Bottom of Bed: 38”
Min. Spindle Nose to Table Distance: 3.5”
Max. Spindle Nose to Table Distance: 23.5”
Spindle Center to Spindle Head Casting Face: 18.25”
X-Axis Travel: 40.75”
Y-Axis Travel: 20”
Z-Axis Travel: 20”
Spindle Taper: 40 Taper
Spindle Speed Range (RPM) : 50 – 8,000 RPM
ATC Tool Capacity: 16
Spindle Motor HP (peak) : 15 HP
Equipped With (subject to buyer verification):
ProtoTRAK RMX Control
Conv-Para/DXF-RMX
Electronic Handweel
ATC
Sold New in 2020
