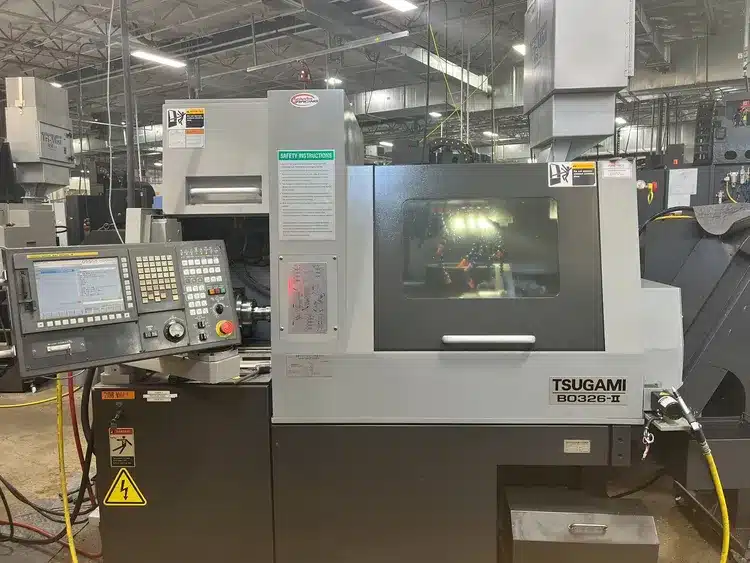

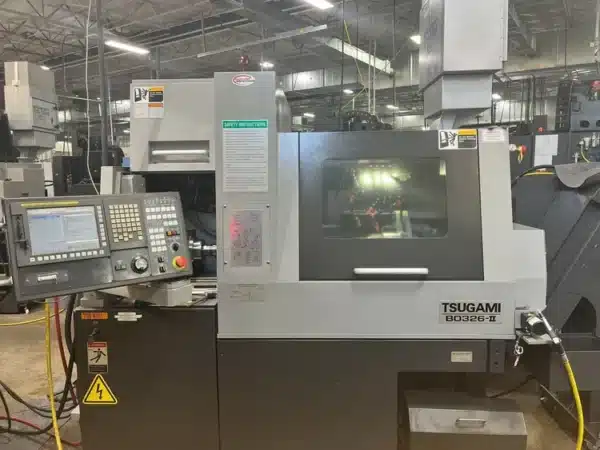

TSUGAMI B0326-II
DESCRIPTION:
32 mm Capacity Swissturn
• Designed For Superior Flexibility
• Electronic Integral Motor Guide Bushing
• Easy Access Tool Zone
• Sub Side Cross Drilling
• Chucker Convertible – in Minutes
Fanuc 32i-B CNC Control,
Edge Technologies Patriot 338 Barfeed,
LNS Chip Conveyor,
Tri-Mist 850-G2 High Output High Efficiency Mist & Smoke Collector,
MP Systems High Pressure Cooling System
SPECIFICATIONS:
SIZE 1.26″
MAX RPM 8,000 RPM
TAILSTOCK No
LIVE TOOLING Yes
SUB SPINDLE Yes
CONTROL CNC (Fanuc 32i-B CNC Control)
Tsugami Model B0326-II 6 Axis CNC Swiss Type Lathe (2013)
Maximum Part Size: 32 mm / 1.263″
Number of Axis: 6
Max Headstock Stroke w/ Guide Bushing: 320 mm / 12.6″
Max Headstock Stroke w/o Guide Bushing: 70 mm / 2.76″
Main Spindle Speed: 200 – 8,000 RPM
Sub Spindle Speed: 200 – 8,000 RPM
Live Tool Speed: 200 – 6,000 RPM
Run in Guide Bushing Mode: YES
Run in Guide Bushless (chucker) Mode: YES
Tool Positions (std / max): 29/43
Number of Live Tool Positions (std / max): 11 /22
Control Type: Fanuc
Equipped With
Fanuc 32i-B CNC Control
Edge Technologies Patriot 338 Barfeed S/N P2201653876 (2016)
LNS Turbo MH500 57009166 Chip Conveyor
Tri-Mist 850-G2 High Output High Efficiency Mist & Smoke Collector
3PM Model 100 Machine Boss Monitoring System
MP Systems High Pressure Cooling System
EQUIPPED WITH:
Fanuc 32i-B CNC Control,
Edge Technologies Patriot 338 Barfeed,
LNS Chip Conveyor,
Tri-Mist 850-G2 High Output High Efficiency Mist & Smoke Collector,
MP Systems High Pressure Cooling System
