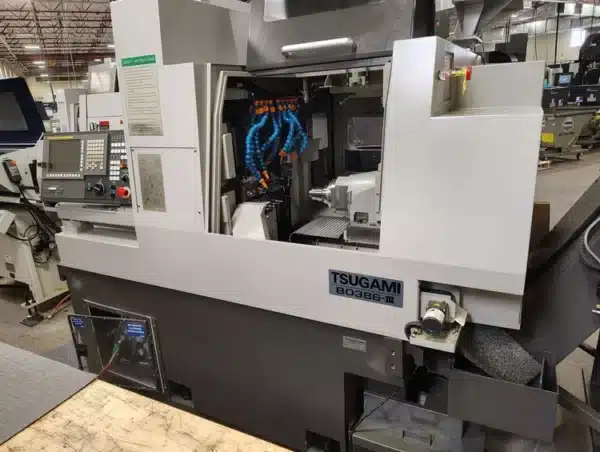

Tsugami B0386 III 6 Axis Opposed Spindle CNC Swiss Type Lathe
Maximum Bar Stock 38 mm / 1.5″
# Axes 6
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing
Max Headstock Stroke w/o Guide Bushing 320 mm / 12.6”
70 mm / 2.75”
# Tool Positions (std / max) 32/ 42
# Live Tool Positions (std / max) 15 / 26
Control FANUC 32i-B
Main Spindle Speed 200 – 6,000 rpm
Sub Spindle Speed 200 – 7,000 rpm
Live Tool Speed 6,000 rpm
Main Spindle Motor 7.5 / 11 kW
Weight 4,850 kg / 10,694 lbs.
Footprint: W x D x H 2,240 x 1,515 x 2,050 mm
88″ x 60″ x 81″
EQUIPPED WITH:
Fanuc CNC Control, Edge Technologies Patriot 551 Bar Feed System, Tri Mist Mist Collection System. The Tsugami B0386-III was specifically designed with heavy cuts in mind. Large linear guides, a three toggle clamping system, and extra ribbing under the spindles are just a few of the Tsugami B0386-III’s engineering advancements. The Tsugami B0386-III comes with powerful horsepower milling spindle motors; increased ability to perform cross milling and drilling features. The 8 station, driven back working block allows maximum capability for parts with many complex features. This machines comes with an included chucker conversion kit.
