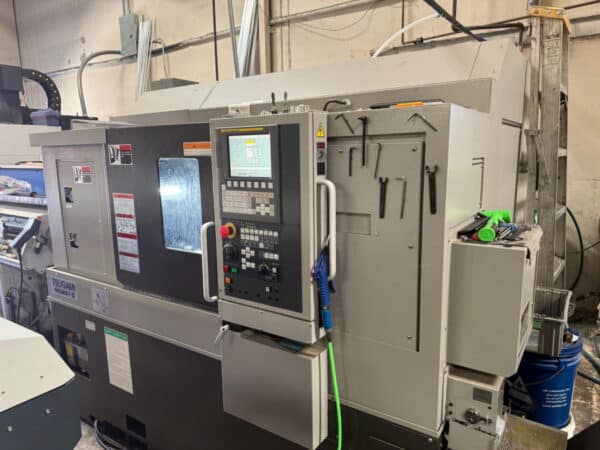

TSUGAMI M08SY 5-Axis CNC Lathe
SPECIFICATIONS:
# AXIS 5
SWING 11″
MACHINING LENGTH 14.96″
CHUCK SIZE 8″
BAR CAPACITY 2″
POWER 14.8 hp
MAX RPM 5,000 RPM
TURNING DIA 11″
CONTROL CNC (Fanuc 0i-TF)
DIMENSIONS 97.24″ x 72.83″ x 75.98″
WEIGHT 13,000 LBS
Bar Capacity: 2″
Chuck Size: 8″
Sub Spindle: 6″
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 14.8 HP
X Axis Travel: 8.7″
Z Axis Travel: 15.75″
Y Axis Travel: 3.94″
C Axis Travel: .001Deg
W Axis Travel: 19.92″
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11″
Max Turning Length: 14.96″
Dimensions: 97.24″ x 72.83″ x 75.98″
Weight: 13,000 LBS
EQUIPPED WITH:
Control: Fanuc 0i-TF
Live tooling:
(2) axial milling
(2) radial milling attachments included
Static tooling: Complete tooling package included.
– OD Type-I OD Type-II ID Single Bore ID Double Bore
Chip Conveyor Included
Tool Presetter Included
Bar Feeder Included
Parts Catcher Included
Live Tooling Included
Sub Spindle Included
Y Axis Included
5 Axis Included
Included
Tool Touch Setter Included
