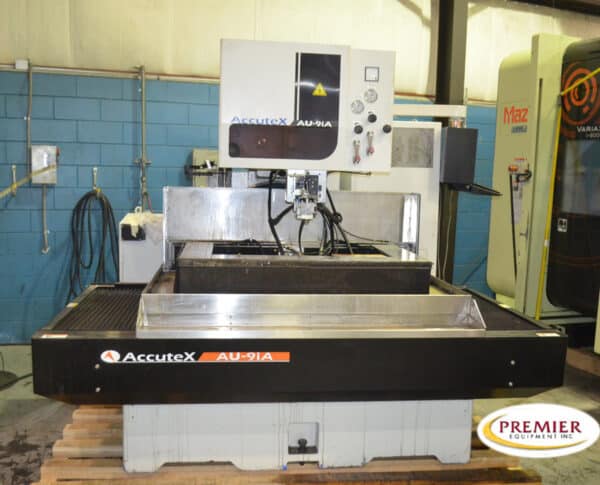

**2021 Accutex Au-9i Table Flushing-Type Wire EDM
Machining
AccuteX is the only major manufacturer to offer open flushing-type production EDM machine models in the U.S. market. The open table design allows for large or odd shaped workpieces to be clamped directly to the table or fixture, overcoming the limitations of traditional fixed work tanks.
Exclusive Open Flushing Design:
Unlike conventional EDM machines with enclosed tanks, the open table configuration offers unrestricted access to the work area. This makes it easy to load, fixture, and machine oversized or uniquely shaped parts that wouldn’t fit in standard work tanks.
Superior Flushing Efficiency:
The open flushing design enhances debris removal and cooling, ensuring consistent cutting speeds, minimizing wire breakage, and delivering improved surface finishes, even on large workpieces.
Precision and Rigidity:
Built withrigid Meehanite cast iron frames and precision-grade components, these machines deliver stable, high-accuracy performance, even when handling oversized and heavy parts.
Specifications (subject to buyer verification):
X Axis Travel: 35.4″
Y Axis Travel: 23.6″
Z Axis Travel: 11.8″
U Axis Travel: 3.9″
V Axis Travel: 3.9″
Table Feed Rate: 40.0 IPM
Max. Taper Angle: ±45°
Max. Workpiece (XYZ) : 54.2″ x 29.9″ x 11.6″
Max Workpiece Weight: 4,890 lbs.
Wire Diameter: 0.006″ – 0.013″
Wire Spool Feed Rate: 60 – 787 IPM
Wire Tension: 300 – 2,200 grams
Start Hole Diameter: 0.020″ ∅
Max. Wire Spool Weight: 35 lbs.
Positioning Accuracy: ±0.00012″
Repeatability (XY) : ±0.00008″
Total Power Required: 15 KVA
Deionized Resin Tank: 935 0.4 cu/ft Fiberglass Bottle
Tank Capacity: 100 Gallons
Floor Space: 128″ x 126″ x 90″
CNC Control Device: 64-Bit Windows Based CE PC
Weight: 11,880 lbs.
Equipped With (subject to buyer verification):
64 Bit Windows Control
Jumbo Wire Feeder
**Purchased and Installed New in 2022 / Mfg 2021
