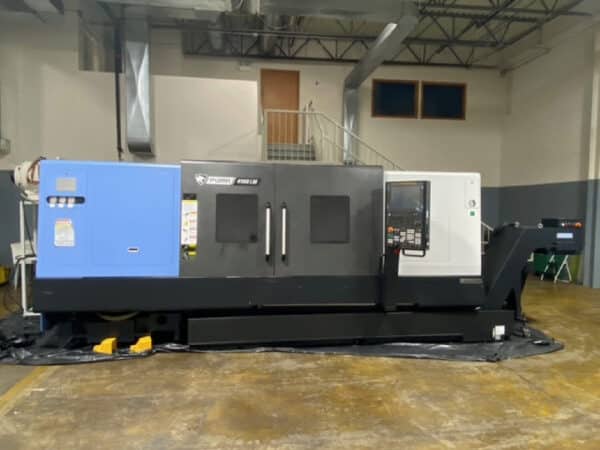

DOOSAN PUMA 4100LMB CNC UNIVERSAL TURNING CENTER WITH MILLING AND HYDRAULIC STEADY REST
Specs
Swing Over Bed 31.1″
Turning Diameter, Shaft Diameter 22″
Machining Length 79.8″
Distance Between Centers 84.7″
Chuck Size 1, 2 15″
Spindle Nose 1, 2 A2 – 11
Spindle Bore Diameter 1, 2 5.2″
Spindle Bar Capacity 1, 2 4.6″
Spindle Speeds 1, 2 2,000 RPM
Gear Ranges 2
Spindle Horsepower 1, 2 50 HP
X – Axis Travel 1, 2 14.3″
Z – Axis Travel 1, 2 84.8″
C – Axis Travel 1, 2 .001 DEG.
Rapid Traverse Rates X1, X2 630 IPM
Rapid Traverse Rates Z1, Z2 787 IPM
Turret Configuration 1, 2 12
Turret Rotary Tool Spindle Speed 1, 2 4000 RPM
Turret Rotary Tool Horse Power 1, 2 14.8 HP
Tailstock Quill Diameter 4.7″
Tailstock Taper MT 6
Tailstock Quill Travel 4.7″
Programmable Tailstock YES
Tailstock Travel 80.7″
Machine Weight 25,352 LBS.
Equipped with
(2) I.D. ROTARY HEADS (2) O.D. ROTARY HEADS
.001 C-AXIS SPINDLE INDEXING AUTOMATIC TOOL SETTER
CHIP CONVEYOR DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
FANUC SERIES I CNC CONTROL PROGRAMMABLE TAILSTOCK
ROTARY TOOLS 4000 RPM SMW SLU-4-ZS HYDRAULIC STEADY REST (9.68” CAPACITY
