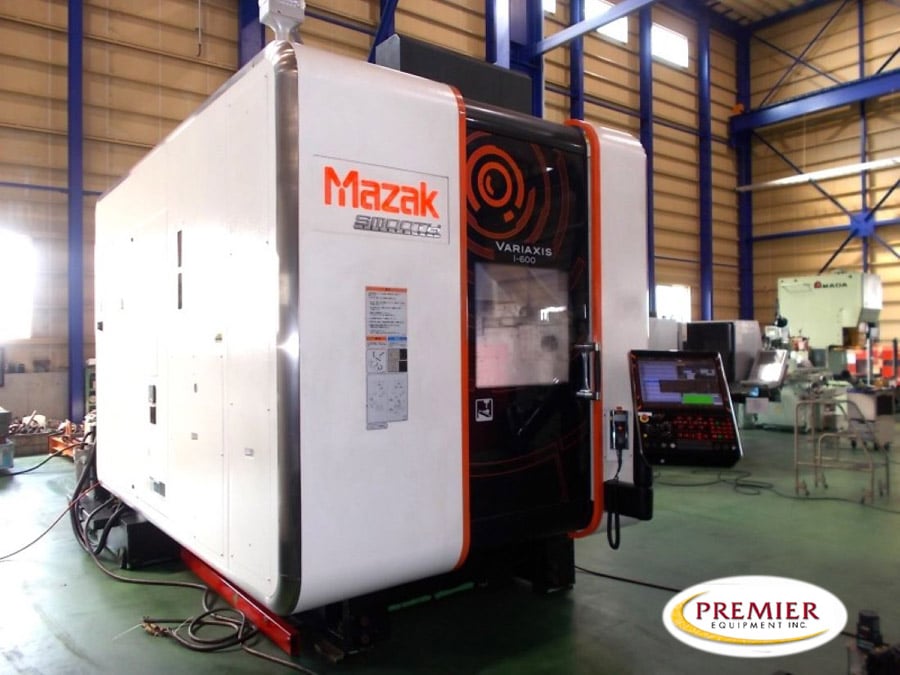

Mazak Variaxis i-600 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
Max. workpiece size 27.56” Dia x 17.72” Height
X-axis travel (Saddle’s longitudinal movement) 20.08”
Y-axis travel (Column’s transverse movement) 35.83”
Z-axis travel (Spindle head’s vertical movement) 20.08”
A-axis travel (Table tilting)[Indexing in units of 0.0001Deg) –120° to +30° (axis control)
C-axis travel (Table rotation)[Indexing in units of 0.0001Deg) ±360°(axis control)
Distance between spindle nose and top of the table 2.76” to 22.83”
(positioned horizontally)
Distance between spindle nose and center of the table 0.79” to 20.87”
(positioned vertically)
Max. load on the table (uniformly distributed load) 1102 lbs
Spindle tapered bore 7/24 taper No. 40
**12,000 RPM???
Spindle speed min1 35 to 12000 RPM
Motor output 30 / 20 HP
**Optional 18,000 RPM???
Spindle speed min 1 35 to 18000 RPM
Motor output 45 / 35 HP
Tool shank type No. 40 (BT???)
Equipped With (subject to buyer verification):
Mazatrol Smooth X CNC Control
Auto Tool Length Measurement and Breakage Detection
Mazak Monitoring System B Renishaw Probe
Relocation Device
Chip Conveyor
**Max Spindle RPM to be verified
