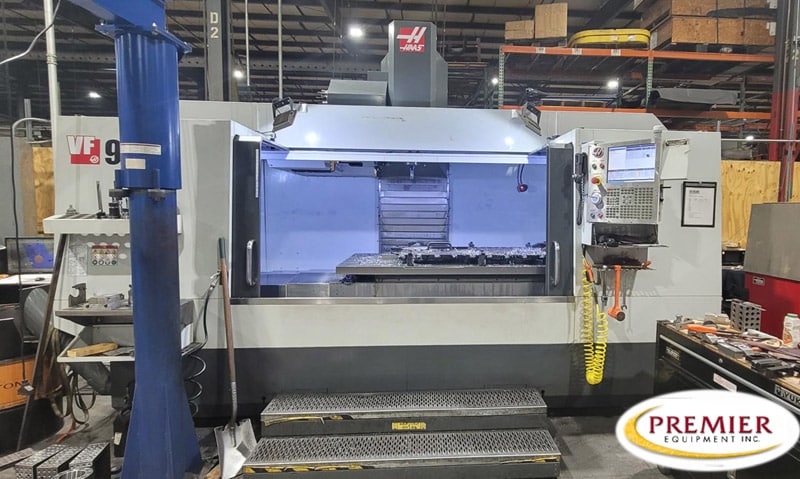

Haas VF9/40 CNC Vertical Machining Center
Specifications (subject to buyer verification):
Travels
X Axis 84.0”
Y Axis 40.0”
Z Axis 30.0”
Spindle Nose to Table (~ max) 34.0”
Spindle Nose to Table (~ min) 4.0”
Spindle
Max Rating 20.0 hp
Max Speed 8100 rpm
Max Torque w/opt Gearbox 250 ft-lbf @ 450 rpm
Taper 40
Table
Length 84.0”
Width 36.0”
T-Slot Width 0.630”
T-Slot Center Distance 4.92”
Number of Std T-Slots 7
Max Weight on Table (evenly distributed) 4000 lbs
Feedrates
Max Cutting 500 ipm
Rapids on X 600 ipm
Rapids on Y 600 ipm
Rapids on Z 600 ipm
Tool Changer
Type SMTC
Capacity 24+1
Max Tool Diameter (full) 3.0”
Max Tool Diameter (adjacent empty) 6.0”
Max Tool Length (from gage line) 16”
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Dimensions – Shipping
Domestic Pallet Dimensions 214” x 120” x 127”
Export Create Dimensions 214” x 124” x 131”
Weight 28300 lb
Equipped With (subject to buyer verification):
Haas CNC Control
1GB Standard Memory
4th Axis Drive Only
8.1k-40T-GBX – 8100 RPM Geard Spindle, 20 HP, 40 Taper
Chip Auger
CAT40
Ethernet Interface
High Speed Machining
Programmable Coolant Nozzle
Remote Jog Handle, Color LCD
Rigid Tapping
Thru Spindle Coolant @ 300 PSI
WIPS-R – Intuitive Probing, Renishaw
