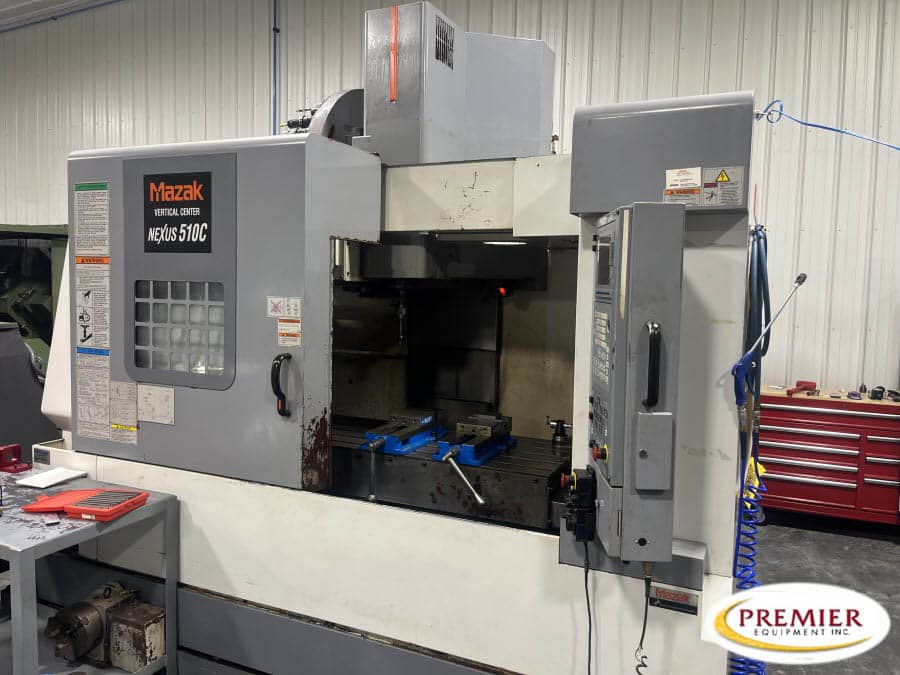

Mazak Nexus 510C – 2003

Mazak Nexus 510C / VCN510C / VCN-510C
CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table size: 51.18×21.65
Table load capacity: 1,102 lbs
X-axis travel: 41.3
Y-axis travel: 20
Z-axis travel: 20
Spindle taper: CAT 40
Spindle speed: 12,000 rpm
Spinlde motor 10/30/cont. min: 25/20/10 HP
Dist. from table to top to spindle nose: 5.9 to 25.98
Tool magazine capacity: 30 Position ATC
Max. tool diameter/length/weight: 4.92/13.8/17.64 lbs.
Tool change time: 1.3 sec
Rapid traverse rates: 1,417 ipm
Machine dimnensoins lxwxh: 113x111x113
Machine weight: 15000lbs

Equipped With (subject to buyer verification):
Mazatrol Fusion 640M Control
Thru Spindle coolant
