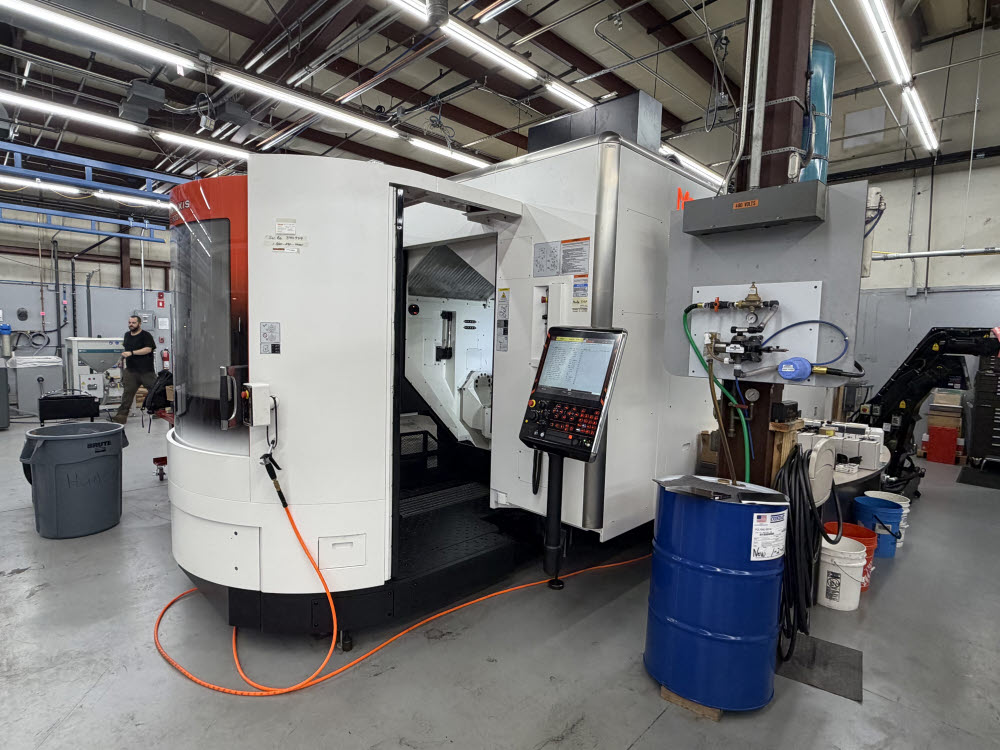

2023 Mazak Variaxis i-800T 5-Axis Vertical Machining Center w/ Pallet Changer
Specifications
Rotary Table / Trunnion: 5th Axis Trunnion
Table / Pallet Size: 31.5″ x 31.5″
Number of Pallets: 2
X-Travel: 28.74″
Y-Travel: 33.46″
Z-Travel: 22.05″
Rapid Traverse: 1890 IPM
Spindle
Spindle Taper Type: Other
Spindle Taper: Capto C8
Spindle Speed: 5,000 RPM
Spindle Motor: 25 HP
Spindle Nose to Table Top: 19.69″”
Tool Changer
Tool Magazine Capacity: 120
Tool Changer Type: Chain
Mazak SmoothAI
Control Options: Color Monitor;Rigid Tapping;Spindle Orientation;USB;Ethernet / LAN;Synchronized Tapping;Inch/Metric Conversion;Manual Pulse Generator / Pendant;EIA/ISO Code Input Function
Additional Control Options: MAZA-Check
19″ Color LCD Touch Screen
Smooth Standard Software
Tool Radius Compensation / 5-axis (G41.4/G42.5)
G37-Auto Tool Length Measurement
G00 Slope Constant
Auto Tool Changer Recovery
Automatic Pallet Changer Auto Recovery
Smooth Set & Inspect Kit
AI Thermal Shield
Absolute Positioning System
Smooth Set and Inspect
Work Cleaning Function
Renishaw Auto Measuring Program for Tool Eye
Options
Machine Options: Automatic Pallet Changer;Worklight;Alarm Light;Tool Eye
Additional Machine Specs: Glass Scale Feedback (X, Y, Z, A, C Axes)
Two 24 in 3-Jaw Scroll Chucks
Spindle Chiller
Ball Screw Coolers (X, Y, Z Axis)
5-Axis Machining Package
Consep 2000 Dual Belt for 2 Pallet Changer
Complete Coolant System
2-Pallet Changer (w/ Work Cleaning Function)
Rotary axes:
A-axis (table tilt): 160°
C-axis (table index): 360°
Accuracy:
Absolute Positioning System
Spindle Chiller Unit
Coolers for Ball Screw (X,Y,Z,-Axis)
Scale Feedback System (A, C, X,Y, Z-Axis)
Spindle: 5,000 RPM, CAPTO C8 Taper Type, High-Torque Spindle
3-Jaw Scroll Chuck-24″
Square Signal Tower (Three Light Color)
High Torque Spindle Capto C8
Coolant Types: Flood Coolant;High Pressure Thru-Spindle Coolant
High Pressure Coolant PSI: 1,000 PSI
Chip Removal: Chip Conveyor
Probe Make/Model: Renishaw RMP600QE
