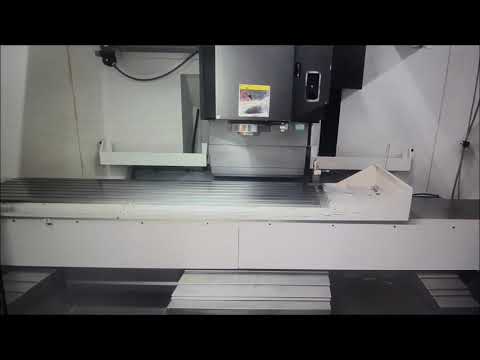

OKUMA MILLAC 852VII – 2016

OKUMA MILLAC 852VII CNC VERTICAL MACHINING CENTER
Specs
Number Of Tables / Pallets 1
Table Size 125.98″ x 33.46″
Weight On Table 8360 LBS.
Spindle Nose To Table 7.87″ ~ 37.4″
X – Axis Travel 120.08″
Y – Axis Travel 33.46″
Z – Axis Travel 29.53″
Rapid Traverse X, Y, Z 1536 IPM
Cutting Feed Rate 1536 IPM
Spindle Speed 6000 RPM
Spindle Taper 50
Number Of Gear Ranges 2
Main Motor 35 HP
Automatic Tool Changer 60 ATC
Tool Diameter 4.7″, 7.87″
Tool Length 15.75″
Tool Weight 44 LBS.
Machine Weight 41,000 LBS.
Equipped with
CHIP CONVEYOR FULL HIGH ENCLOSURES
HELICAL INTERPOLATION INCH/METRIC SWITCHABLE INPUT
MULTI TAP TRANSFORMER OKUMA OSP P300MA CNC CONTROL
PREPPED FOR HIGH PRESSURE THRU SPINDLE COOLANT RENISHAW PROBE
RIGID TAPPING SPINDLE AIR BLOW
SPINDLE CHILLER THRU SPINDLE COOLANT
TOOL LENGTH MEASUREMENT SYSTEM
